P3T-12G18G-70-T-SFF * Active

Absorptive High Speed SP3T Switch

Buy Now
P3T-12G18G-70-T-SFF *
Product Feature
Additional Documents

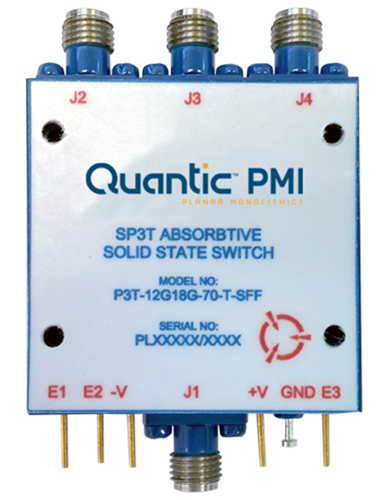

Quantic PMI Model P3T-12G18G-70-T-SFF is an Absorptive, High Speed, Single Pole Three Throw Switch capable of switching within 100 ns maximum with a frequency range of 12 to 18 GHz and has 70 dB isolation. Housing size is 1.5" x 1.5" x 0.4" and is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Configuration: SP3T
Reflective / Absorptive: Absorptive
Frequency (GHz): 12 to 18
Frequency Min (GHz): 12
Frequency Max (GHz): 18
Insertion Loss (dB): 3.75 dB Max
Insertion Loss - Typ (dB): 3.75 dB
Isolation (dB): 70 dB Min
Isolation - Typ (dB): 70 dB
Switching Speed: 100 ns Max
Switching Speed - Typ: 100 ns
VSWR In/Out: 2.0:1 Max - Measured 1.93:1
Input Power: 20 dBm Max
Survival Power: 30 dBm CW Max
Impedance: 50 Ohm
Control Signal: TTL Compatible
Power Supply: +5 VDC @ 150 mA Typ,
-15 VDC @ 100 mA Typ
Power & Control Connector: Solder Pins
Connectors: SMA Female
Size: 1.5" x 1.5" x 0.4"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
