PMI Model No. P3T-0R5G18G-55-T-SFF-PN-OPT218 is a single pole, three throw, absorptive switch designed to operate over the 2.0 to 18.0 GHz frequency range. This model is designed to maintain low insertion loss, high isolation and fast switching speed.

Product Specifications

General Parameters:
Status: Active
Frequency: 2.0 to 18.0 GHz
Frequency Min: 2 GHz
Frequency Max: 18 GHz
Insertion Loss (Typ): 3.8 dB
Isolation (Typ): 55 dB
Reflective / Absorptive: Absorptive
Switching Speed (Typ): 100 nsec
Configuration: SP3T
Isolation: 55 dB Min
Insertion Loss: 3.8 dB Max
VSWR In/Out: 2.0:1 Max
Input Power: +20 dBm CW Max
Switching Speed: 100 ns Max
Control Signal: 3 Bit TTL Logic
Power Supply: +5 V @ 120 mA nominal, -15 V @ 50 mA nominal
Connectors: SMA (F)
Power & Control Connector: Solder Pins

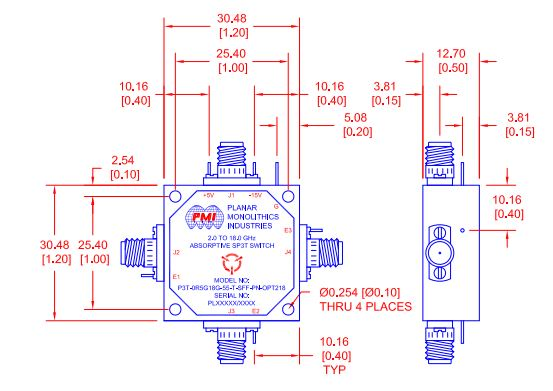

Size: 1.2" x 1.2" x 0.5"
Environmental Ratings:
Operating Temperature: -40 to +85 ºC
Non-Operating Temperature: -55 ºC to +125 ºC
