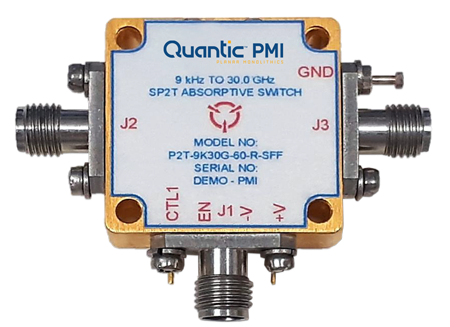

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP2T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency Range (GHz): | 0.000009 to 30 |
|---|
| Frequency Min (GHz): | 9E-06 |
|---|
| Frequency Max (GHz): | 30 |
|---|
| Insertion Loss (dB): | 1.1 dB Typ (9 kHz to 10 GHz),
1.4 dB Typ (10 to 20 GHz),
2 dB Typ (20 to 30 GHz) |
|---|
| Insertion Loss - Typ (dB): | 2 dB |
|---|
| Isolation (dB): | 65 dB Typ (9 kHz - 10 GHz) - Measured 57.19 dB
60 dB Typ (10 GHz - 20 GHz) - Measured 50.44 dB
60 dB Typ (20 GHz - 30 GHz) - Measured 48.75 dB |
|---|
| Isolation - Typ (dB): | 60 dB |
|---|
| Switching Speed (Typ): | 1000 ns |
|---|
| Input Power (dBm): | 24 dBm Max (18 dBm Hot Switching Max) |
|---|
| P1dB (dBm): | 28 dBm Typ - Measured 28.5 dBm |
|---|
| Switching Speed: | 1 µs Typ |
|---|
| Rise/Fall Time: | 1.0 µs Typ - Measured 0.44
0.51 µs (10% To 90% Of RF Output) |
|---|
| Delay On/Off: | 1.1 µs Typ - Measured 3.441 µs
(50% Vctl To 90% Of RF Output) |
|---|
| Power Supply: | +V = +3.3 - 5.0 VDC @ 300 - 600 µA - Measured 100 µA
-V = -2.5 VDC @ 10 µA Max - Measured 10 µA |
|---|
| Power & Control Connector: | Soder Pins |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 25.40 mm x 25.40 mm x 10.16 mm
1.00" x 1.00" x 0.40" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 ºC to +85 ºC |
|---|
| Temperature (Storage): | -55 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
