| General Parameters: |
|---|
| Status: | Active |
|---|

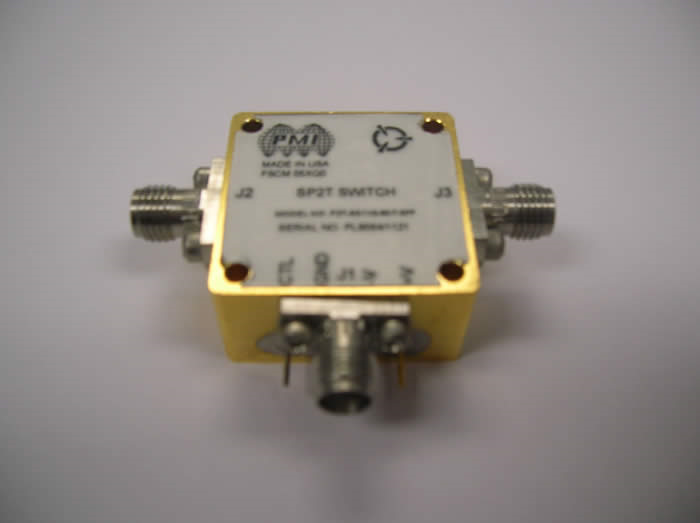

| Configuration: | SP2T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency Range (GHz): | 8 to 11 |
|---|
| Frequency Min (GHz): | 8 |
|---|
| Frequency Max (GHz): | 11 |
|---|
| Insertion Loss (dB): | 2.5 dB Typ, 3.5 dB Max |
|---|
| Insertion Loss - Typ (dB): | 3.5 dB |
|---|
| Isolation (dB): | 90 dB Min - Measured 104 dB |
|---|
| Isolation - Typ (dB): | 90 dB |
|---|
| Switching Speed (Typ): | 50 ns |
|---|
| VSWR In/Out: | 2.0:1 Max - Measured 1.6:1 |
|---|
| Input Power (dBm): | +20dBm CW (Operating) |
|---|
| Survival Power: | 1 Watt Peak, 1usec PW |
|---|
| Switching Speed: | 50 ns Max - Measured 15 to 20 ns |
|---|
| Control Signal: | Single Line TTL |
|---|
| Power Supply: | +5 VDC @ 45 mA typ. - Measured 42 mA -5 VDC @ 35 mA typ. - Measured 32 mA |
|---|
| Connectors: | SMA (F) |
|---|
| Size: | 1.0" x 1.0" x 0.5" |
|---|
| Weight: | 1.5 oz. typical |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 to +85 ºC |
|---|
| Temperature (Storage): | -65ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
