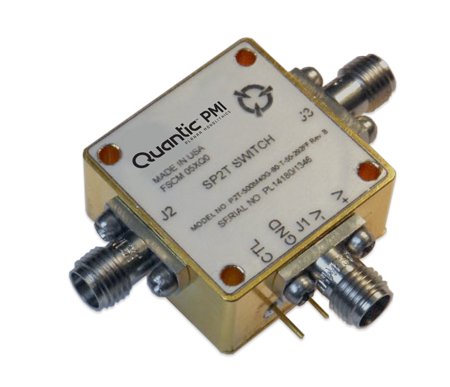

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP2T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency Range (GHz): | 0.5 to 40 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 40 |
|---|
| Insertion Loss (dB): | 6 dB Max |
|---|
| Isolation (dB): | 55 dB Min - Measured 70.87 dB |
|---|
| Switching Speed (Typ): | 50 ns |
|---|
| VSWR In/Out: | 2.5:1 Max, 2.0:1 Typ - Measured 2.42:1 |
|---|
| Input Power (dBm): | +20 dBm CW Max - Measured +20 dBm CW |
|---|
| Switching Speed: | 50 ns Max - Measured 40 ns |
|---|
| Control Signal: | TTL |
|---|
| Power Supply: | +5 VDC @ 200 mA - Measured 40 mA,
-5 VDC @ 100 mA - Measured 30 mA |
|---|
| Connectors: | 2.92mm (F) |
|---|
| Size: | 1.0" x 1.0" x 0.5" |
|---|
| Finish: | Painted Gray |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 ºC to +85 ºC |
|---|
| Temperature (Storage): | -55 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
