P2T-500M40G-60-R-55-292FF * Active

Reflective SP2T Pin Diode Switch

Buy Now
P2T-500M40G-60-R-55-292FF *
Product Feature

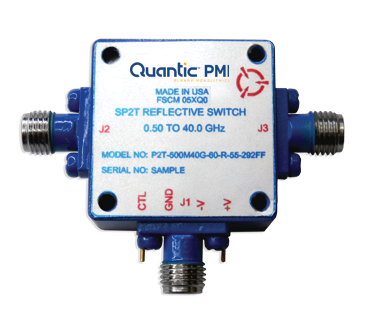

Quantic PMI Model P2T-500M40G-60-R-55-292FF is a reflective, single pole, two throw pin diode switch that operates over the 0.5 to 40 GHz frequency range with a switching speed of 50 ns; insertion loss of 5.5 dB; isolation of 55 dB and a VSWR of 2.5:1. This model incorporates a TTL compatible driver for easy system integration. Housing size is 1.0" x 1.0" x 0.5" with 2.92mm connectors.

Product Specifications

General Parameters:
Status: Active
Configuration: SP2T
Reflective / Absorptive: Reflective
Frequency Range (GHz): 0.5 to 40
Frequency Min (GHz): 0.5
Frequency Max (GHz): 40
Insertion Loss (dB): 5.5 dB Typ
Isolation (dB): 55 dB Min - Measured 55.43 dB
Input Power (dBm): 20 dBm CW Max
Switching Speed: Rise: 15 ns Max - Measured 3 ns,
Fall: 15 ns Max - Measured 3 ns,
Delay On: 50 ns Max - Measured 25 ns,
Delay Off: 50 ns Max - Measured 25 ns
Power Supply: +5 VDC @ 200 mA Max - Measured 50 mA,
-5 V @ 100 mA Max - Measured 18 mA
Control Signal: 2-Bit TTL Logic
VSWR In/Out: 2.5:1 Typ - Measured 2.33:1
Power & Control Connector: Solder Pins
Connectors: 2.92mm Female - removeable
Size: 1.0" x 1.0" x 0.5"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 ºC to +85 ºC
Temperature (Storage): -55 ºC to +125 ºC
