P2T-500M20G-50-T-5-12-SFF-I-SP Active

Terminated SP2T Switch

Buy Now
P2T-500M20G-50-T-5-12-SFF-I-SP
Product Feature

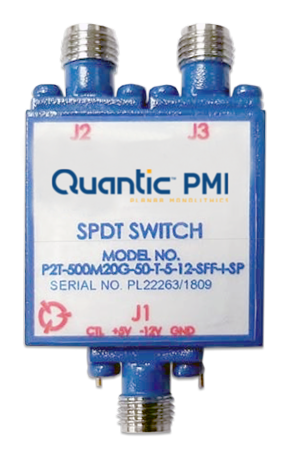

Quantic PMI Model P2T-500M20G-50-T-5-12-SFF-I-SP is a terminated, single pole, double throw, switch that operates from 500 MHz to 20.0 GHz which handles +23 dBm CW input power. This model has an In-Line Configuration. The port-to-port isolation is greater than 50 dB. This model has low insertion loss while offering a fast-switching speed of 50 ns maximum.

Product Specifications

General Parameters:
Status: Active
Configuration: SP2T
Reflective / Absorptive: Absorptive
Frequency Range (GHz): SP2T
Frequency Min (GHz): 0.5
Frequency Max (GHz): 20
Insertion Loss (dB): 2.8 dB Max
Insertion Loss - Typ (dB): 2.52 dB
Isolation (dB): 50 dB Min - Measured 53.88 dB
Isolation - Typ (dB): 53.88 dB
Switching Speed (Typ): 50 ns
VSWR In/Out: 1.9:1 Max - Measured 1.85:1
Input Power (dBm): +23 dBm CW Max
Switching Speed: 50 ns Max - Measured 37 ns Typ
Control Signal: TTL Logic
Power Supply: 80 mA @ +5 VDC Typ - Measured 13 mA
80 mA @ -12 VDC Typ - Measured 67 mA
Power & Control Connector: EMI Filtered Solder Pins
Connectors: SMA (F)
Size: 1.0" x 1.0" x 0.5"
Weight: 1.5 oz Typ
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -45 ºC to +90 ºC
Temperature (Storage): -54 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
