P2T-500M18G-USB * Active

USB SPDT Absorptive Switch

Buy Now

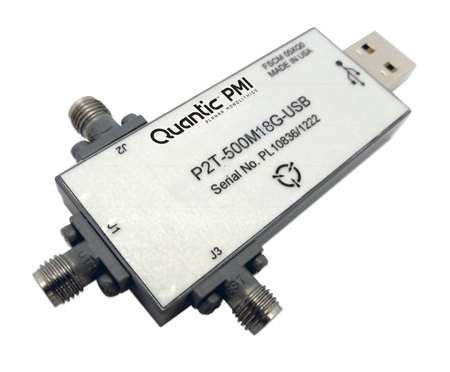

Quantic PMI Model P2T-500M18G-USB is a state-of-the-art SPDT, Absorptive switch that operates from 0.5 to 18 GHz.  This switch is powered and controlled via USB 2.0.  This model offers low insertion loss of 6.0 dB maximum and a minimum isolation of 60 dB.  Easy driver installation, simply download and run the Quantic PMI USB Software application from any windows computer.   Compatible with Windows XP to 11. Package size is 2.25" x 1.0" x 0.33" with standard USB Type A and SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Reflective / Absorptive: Absorptive
Operating Input Power (dBm): 20
Power & Control Type: USB 2.0
Features: Low Insertion Loss, High isolation, USB 2.0 Controlled, Ultra-Broad Band Operation
Frequency: 0.5 to 18 GHz
Isolation: 60 dB Min - Measured 71.39 dB
Insertion Loss: 6.0d B Max - Measured 3.05 dB
VSWR In/Out: 2.5:1 Typ - Measured 1.92:1
Input Power: +23 dBm CW Max - Measured +20 dBm CW Max
Survival Power: 1 W Peak, 1 µs
Connectors In/Out: Removable SMA (F)
Power and Control Connector: USB Type A Plug
Size: 2.25" x 1.00" x 0.33"

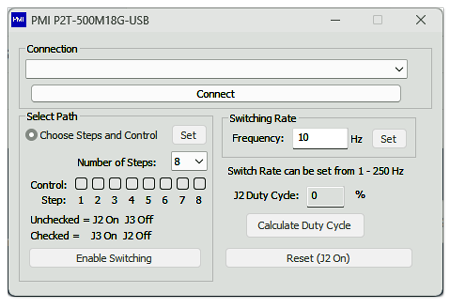

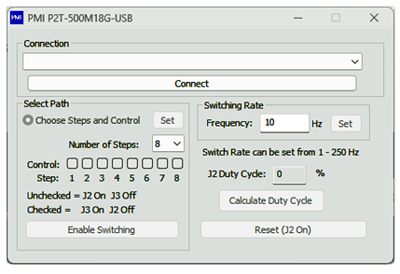

Driver Installation: Download and run the Quantic PMI USB Software application from any windows computer.   Compatible with Windows XP to 11.
No External Power Supplies: Powered through USB
Environmental Ratings:
Operating Temperature: -40 ºC to +85 ºC Operating
Non-Operating: -55 ºC to +125 ºC non-Operating
