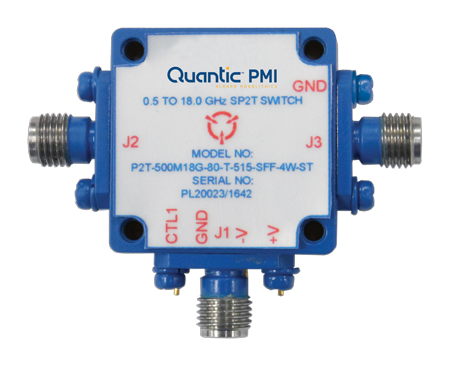

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP2T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency Range (GHz): | 0.5 to 18 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss (dB): | 3.5 dB Typ |
|---|
| Insertion Loss - Typ (dB): | 3.5 dB |
|---|
| Isolation (dB): | 70 dB Min |
|---|
| Isolation - Typ (dB): | 70 dB |
|---|
| Switching Speed (Typ): | 60 ns |
|---|
| VSWR In/Out: | 2.0:1 Max - Measured 1.9:1 |
|---|
| Input Power (dBm): | 4 W CW Max |
|---|
| Operating Peak Input Power: | 20 W Max - 2 MHz PRF, 10% Duty Cycle |
|---|
| Switching Speed: | 60 ns Max - Measured <40 ns |
|---|
| Control Signal: | TTL Logic |
|---|
| Power Supply: | +5 VDC @ 150 mA - Measured 63 mA,
-15 VDC @ 150 mA - Measured 78 mA |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 1.0" x 1.0" x 0.4" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 ºC to +85 ºC |
|---|
| Temperature (Storage): | -55 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
|---|
