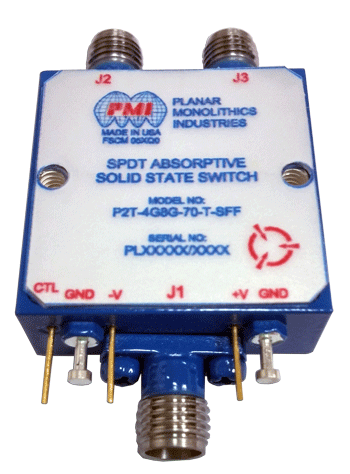

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP2T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency Range (GHz): | 4 to 8 |
|---|
| Frequency Min (GHz): | 4 |
|---|
| Frequency Max (GHz): | 8 |
|---|
| Insertion Loss (dB): | 1.9 dB Max |
|---|
| Insertion Loss - Typ (dB): | 1.9 dB |
|---|
| Isolation (dB): | 70 dBm Min - Measured 119 dB |
|---|
| Isolation - Typ (dB): | 70 dB |
|---|
| Switching Speed (Typ): | 100 ns |
|---|
| VSWR In/Out: | 1.6:1 Typ - Measured 1.52:1 |
|---|
| Input Power (dBm): | +30 dBm Max (Survival), +20 dBm Max (Operating) |
|---|
| Switching Speed: | 100 ns Max - Measured 49.6 ns |
|---|
| Impedance: | 50 ? |
|---|
| Control Signal: | Solder Pin, TTL Compatible |
|---|
| Power Supply: | +5 VDC, 100 mA Typ - Measured 24 mA, -15 VDC, 100 mA Typ - Measured 58 mA |
|---|
| Connectors: | SMA (F) |
|---|
| Size: | 1.0" x 1.0" x 0.4" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 to +85 ºC |
|---|
| Temperature (Storage): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. C |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
|---|
