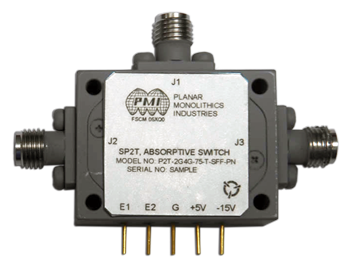

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP2T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency Range (GHz): | 2 to 4 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 4 |
|---|
| Insertion Loss (dB): | 1.2 dB |
|---|
| Insertion Loss - Typ (dB): | 1.2 dB |
|---|
| Isolation (dB): | 75 dBm Min - Measured 87.15 dB |
|---|
| Isolation - Typ (dB): | 75 dB |
|---|
| Switching Speed (Typ): | 100 ns |
|---|
| VSWR In/Out: | 1.6:1 Max - Measured 1.51:1 |
|---|
| Input Power (dBm): | 1 Watt CW Max |
|---|
| Switching Speed: | 100 ns Max - Measured 73 ns |
|---|
| Control Signal: | 2 Bit TTL Logic |
|---|
| Power Supply: | +5V @ 80 mA nominal - Measured 26 mA, -15V @ 50 mA nominal - Measured 59 mA |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | SMA (F) |
|---|
| Size: | 1.2" x 0.9" x 0.35" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 to +85 ºC |
|---|
| Temperature (Storage): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
