P2T-1G1R1G-25-R-SFF-100W Active

SP2T Reflective Switch

Buy Now

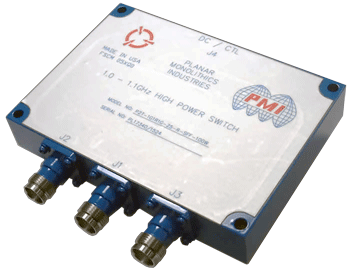

P2T-1G1R1G-25-R-SFF-100W
Product Feature

Quantic PMI Model P2T-1G1R1G-25-R-SFF-100W is a single pole, two throw, hermetically sealed reflective switch designed to operate over the 1.0 to 1.1 GHz frequency range. This model is designed to handle 100 Ws average input power and 5 KW peak having a 17 µs pulse width and 2% duty cycle.

Product Specifications

General Parameters:
Status: Active
Configuration: SP2T
Reflective / Absorptive: Reflective
Frequency Range (GHz): 1 to 1.1
Frequency Min (GHz): 1
Frequency Max (GHz): 1.1
Insertion Loss (dB): 0.8 dB Max
Insertion Loss - Typ (dB): 0.8 dB
Isolation (dB): 25 dB Min - Measured 409 dB
Isolation - Typ (dB): 25 dB
Switching Speed (Typ): 250 ns
Switching Rate: 2 KHz
Switching Rage PRF: 600 Hz
Input Power (dBm): 100 W - Measured at 125.89 W CW
Operating Peak Input Power: 5 KW Peak
Switching Speed: 250 ns Typ - Measured 176 ns (50% TTL to 10% / 90% RF)
Rise Time: 275 ns Typ - From 10% to 90% RF Measured 80ns
Pulse Width: 17 µs
Power Supply: +50 OhmDC @ 50 mA - Measured 10 mA +5 VDC @ 200 mA - Measured 175 mA
Control Signal: TTL
VSWR In/Out: 1.5:1 - Measured 1.23.1
Power & Control Connector: 9-Pin Micro D (DC/Control)
Connectors: TNC Female
Size: 4.22" x 2.98" x 0.70"
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -45 to +85 ºC
Temperature (Storage): -54 ºC to +125 ºC
EMI / EMC: MIL-STD-461
