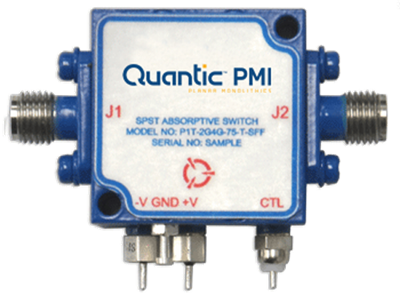

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SPST |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency Range (GHz): | 2 to 4 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 4 |
|---|
| Insertion Loss - Typ (dB): | 1.1 dB |
|---|
| Insertion Loss (dB): | 1.1 dB Max |
|---|
| Isolation (dB): | 75 dB Min |
|---|
| Isolation - Typ (dB): | 75 dB |
|---|
| Switching Speed: | 50 ns Max |
|---|
| Switching Speed - Typ: | 50 ns |
|---|
| VSWR In/Out: | 1.6:1 Typ - Measured 1.1:1 |
|---|
| Input Power: | 30 dBm Max (Survival),
20 dBm Max (Operating) |
|---|
| Impedance: | 50 Ohm |
|---|
| Control Signal: | Solder Pin, TTL Compatible,
"0" = Insertion Loss,
"1" = Isolation |
|---|
| Power Supply: | +5 VDC, 20 mA Typ - Measured 22 mA,
-15 VDC, 40 mA Typ - Measured 57 mA |
|---|
| Power & Control Connector: | Feedthrus |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 1.0" x 1.0" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Temperature (Storage): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond A |
|---|
