P1T-1218-55-T-SFF Active

SPST Absorptive Switch

Buy Now
P1T-1218-55-T-SFF
  • P1T-1218-55-T-SFF
  • P1T-1218-55-T-SFF
Product Feature

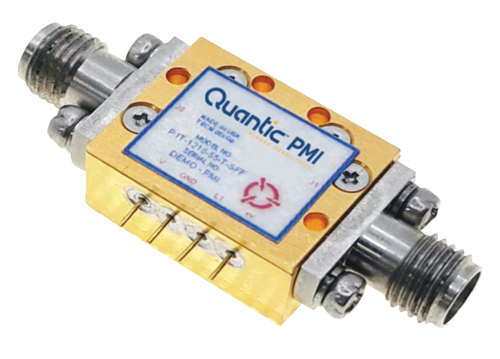

Quantic PMI Model P1T-1218-55-T-SFF is a Single Pole, Single Throw, Absorptive Switch that operates over the 12 to 18 GHz frequency range that has a minimum isolation of 60 dB and a maximum insertion loss of 2.5 dB. This Switch has a maximum switching time of 100 ns and a maximum VSWR of 2:1. This model has SMA female removable connectors and a housing measuring 0.69" x 0.53" x 0.345".

Product Specifications

General Parameters:
Status: Active
Configuration: SPST
Reflective / Absorptive: Absorptive
Frequency Range (GHz): 12 to 18
Frequency Min (GHz): 12
Frequency Max (GHz): 18
Insertion Loss (dB): 2.5 dB Max
Isolation (dB): 60 dB Min
Input Power: 25 dBm CW Max
Impedance: 50 Ohm
Interface: TTL (1: Off, 0: On)
Frequency Ripple: ±0.5 dB Max
Video Feedthrough: 5 mV @ 100 MHz BW Max
Switching Time: 100 ns Max
Rise Time 10/90%: 20 ns Max
Fall Time 90/10%: 20 ns Max
Input VSWR (Non-Reflective): 2:1 Max
Output VSWR (Reflective): 2:1 Max
RF Input Power: CW +25 dBm Max
Supply Voltages: +5 V ± 5%
-15 V ± 5%
50 mV Ripple (100 MHz BW)
Supply Current: +60 mA Max
-30 mA Max
Cooling: Natural Convection and Radiation
Corrosion: Resistant Against Seawater
MTBF: 200, 000 h
EMC: No Radiation
Connectors: SMA Female - removable

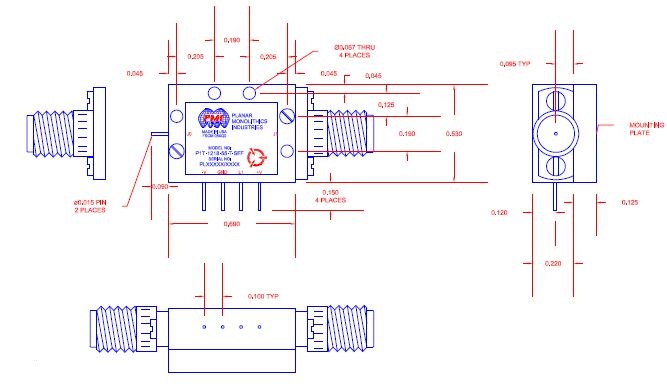

Size: 0.69" x 0.53" x 0.345"
Weight: 10 g Max
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -30 °C to +85 °C
Temperature (Storage): -40 °C to +85 °C
Humidity: 90%
Vibration: Random: 20 - 500 Hz
Spectral Density: 0.01 g²/Hz
RMS: 2.2 g
Mechanical Shock: Peak: 100 g
Duration: 4 ms, Halfsine
Pressure: Operation: 0.6 - 1.4 bar
Storage: 0.3 - 1.4 bar
Variation: ±0.5 bar
