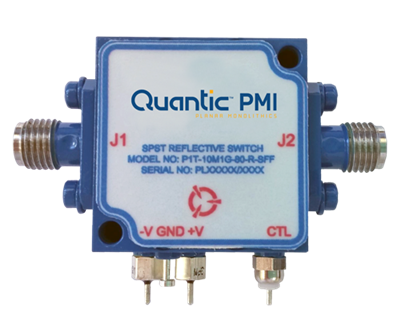

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SPST |
|---|
| Reflective / Absorptive: | Reflective |
|---|
| Frequency Range (GHz): | 0.01 to 1 |
|---|
| Frequency Min (GHz): | 0.01 |
|---|
| Frequency Max (GHz): | 1 |
|---|
| Insertion Loss - Typ (dB): | 1 dB |
|---|
| Insertion Loss (dB): | 1 dB Typ |
|---|
| Isolation (dB): | 80 dB Typ |
|---|
| Isolation - Typ (dB): | 80 dB |
|---|
| Switching Speed: | 200 ns Max |
|---|
| Switching Speed - Typ: | 200 ns |
|---|
| VSWR In/Out: | 1.5:1 Typ - Measured 1.34:1 |
|---|
| Input Power: | 20 dBm Max |
|---|
| Survival Power: | 30 dBm Max |
|---|
| Impedance: | 50 Ohm |
|---|
| Control Signal: | Solder Pin, TTL Compatible, "0" = Insertion Loss, "1" = Isolation |
|---|
| Power Supply: | +5 VDC, 20 mA Typ - Measured 1.5 mA,
-15 VDC, 20 mA Typ - Measured 25.3 mA |
|---|
| Power & Control Connector: | Feedthrus |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 1.0" x 1.0" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 °C to +85 °C |
|---|
| Temperature (Storage): | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
|---|
