MA-8D5G10D5G-20DB-SFF Active

Mechanical Attenuator

MA-8D5G10D5G-20DB-SFF
Product Feature

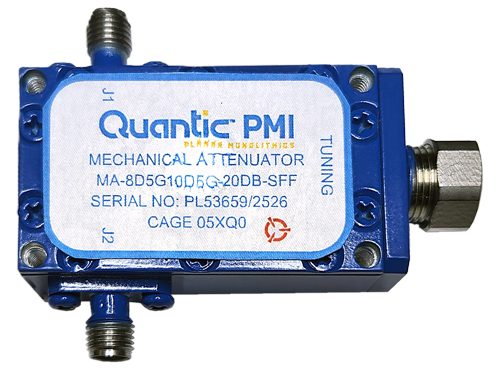

Quantic PMI Model MA-8D5G10D5G-20DB-SFF is an 8.5 to 10.5 GHz Mechanical Variable Attenuator that offers an attenuation range of 0 to 20 dB with a flatness of ±0.5 dB maximum. Supplied in a 1.75" x 1.0" x 0.5" housing with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 8.5 to 10.5
Frequency Min (GHz): 8.5
Frequency Max (GHz): 10.5
Attenuation (dB): 0 to 20 dB
Attenuation Flatness (dB): ±0.5 dB Max
Insertion Loss (dB): 0.5 dB Max
VSWR: 1.5:1 Max
Adjustment Method: Screwdriver and shaft lock
Connectors: SMA Female
Size: 1.75" x 1.0" x 0.5"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -54 °C to +55 °C
Temperature (Storage): -57 °C to +85 °C
Operating Humidity: 5 to 95%
Shock: 15 g, 11 ms (6-AXIS)
Vibration: MIL-E-5400T FIigure 2 Curve II (2 g)
Altitude: 30000 ft Max
