MA-1D5G2G-15DB-SFF Active

Mechanical Variable Attenuator

MA-1D5G2G-15DB-SFF
Product Feature

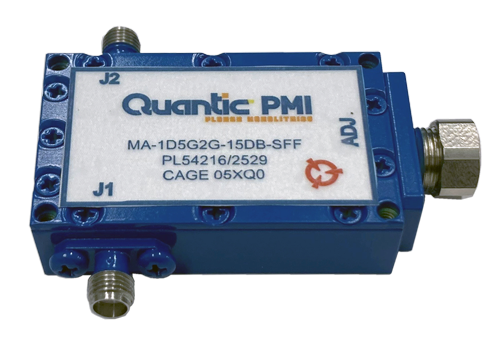

Quantic PMI Model MA-1D5G2G-15DB-SFF is a 1.5 to 2 GHz Mechanical Variable Attenuator that offers an attenuation range of 0 to 15 dB. attenuation adjustments are made using a screwdriver and shaft lock. The unit is supplied in a 2.0" x 1.25" x 0.5" housing with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1.5 to 2
Frequency Min (GHz): 1.5
Frequency Max (GHz): 2
Attenuation (dB): 0 to 15
Insertion Loss (dB): 0.5 dB Max
VSWR: 1.7:1 Max
Adjustment Method: Screwdriver and shaft lock
Connectors: SMA Female
Size: 2.00" x 1.25" x 0.5"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -54 ˚C to +55 ˚C
Temperature (Storage): -57 ˚C to +85 ˚C
Operating Humidity: 5 to 95%
Shock: 15 g, 11 ms (6-Axis)
Vibration: MIL-E-5400T Figure 2 Curve II (2 g)
Altitude: 30000 ft. Max
