LPF-DC1R7G-SFF Preliminary

Product Feature

PMI Model No. LPF-DC1R7G-SFF is a low pass filter with a frequency range of DC to 1.7 GHz. It has a maximum insertion loss of 3.0 dB and a maximum VSWR of 1.5:1. This model is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Passband: DC to 1700 MHz
Cut-Off Frequency: 1700 MHz
Passband Insertion Loss: 3.0 dB max.
Input Power: 1 W max.
Rejection @ 1.8 to 8.0 GHz: 30 dB min.
Impedance: 50 Ohms
Passband VSWR: 1.5:1 max.
Connectors In/Out: SMA (F)

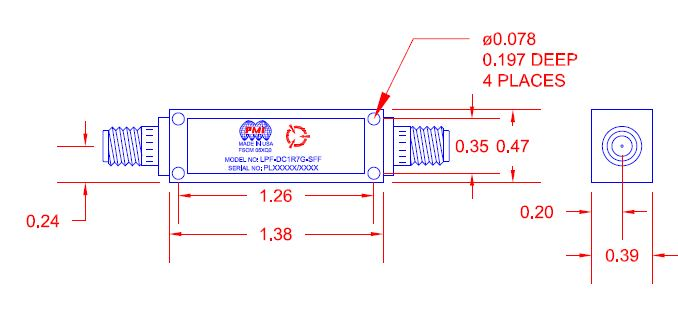

Size: 1.38" x 0.47" x 0.39"
Environmental Ratings:
Temperature: -40°C to +70°C
Non-Operating: -65°C to +125°C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
