| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Passband: | DC to 2500 MHz |
|---|
| Cut-Off Frequency: | 2700 MHz |
|---|
| Passband Insertion Loss: | 1.0dB |
|---|
| Rejection: | -50dBc @ 5000MHz, -40dBc @ 5000 to 15,000MHz |
|---|
| Passband VSWR: | 1.5:1 |
|---|
| Connectors In/Out: | SMA(F/F) |
|---|

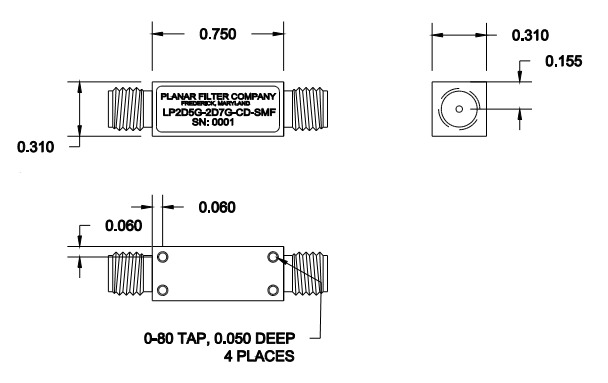

| Size: | 0.75 x 0.31 x 0.31 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -40 to 85 Degree C |
|---|
| Non-Operating: | -40 to 100 Degree C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
