LP2600M-CD-MLL Active

Product Feature

PMI Model No. LP2600M-CD-MLL is a lowpass filter. This filter offers very high Q with broadband performance and very low loss, and is ideal for eliminating broadband harmonics.

Product Specifications

General Parameters:
Status: Active
Passband: DC to 2600 MHz
Cut-Off Frequency: 2600 MHz
Passband Insertion Loss: 1 dB typ.
Return Loss: 10 dB typ. (In the Passband)

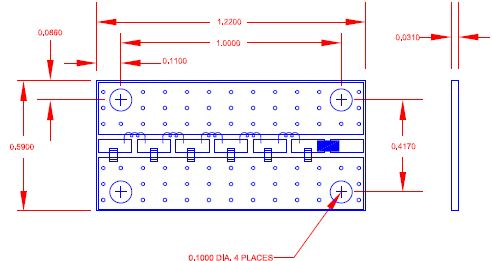

Size: 1.220" x 0.590" x 0.031"
Finish: Backside Copper
Rejection @ 3000 MHz: 13 dB typ.
Rejection @ 3500 MHz: 51 dB typ.
Rejection @ 3800 MHz: 60 dB typ.
Environmental Ratings:
Temperature: -40°C to +70°C
Non-Operating: -40°C to +100°C
