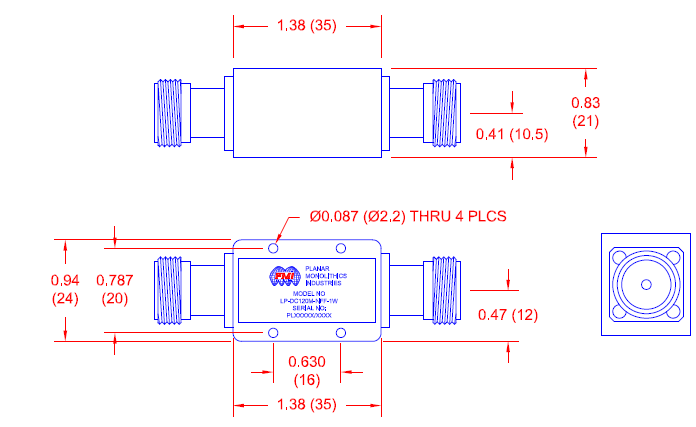

PMI Model No. LP1610-1627-CD-SFM is a lowpass filter having a cut-off frequency of 1700MHz and 0.2dB typical insertion loss in the passband. This filter provides 20dB of rejection at 3220MHz, 25dB of rejection at 4830MHz and 30dB of rejection at 6440MHz. This model also has a DC bypass feature that allows 7VDC, 500mA to pass from the input to the output. The unit measures 1.614" x 1.339" x 0.394" and is supplied with SAM Female on the input and SMA Male on the output.
