LP1300M-CD-MLL Active

Product Feature
Additional Documents

PMI Model No. LP1300M-CD-MLL is a lowpass filter. This filter offers very high Q with broadband performance and very low loss, and is ideal for eliminating broadband harmonics.

Product Specifications

General Parameters:
Status: Active
Passband: DC to 1300 MHz
Cut-Off Frequency: 1300 MHz
Passband Insertion Loss: 1.5 dB typ.
VSWR: 1.5:1 typ. (In the Passband)

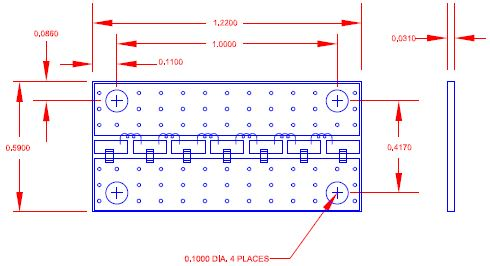

Size: 1.220" x 0.590" x 0.031"
Finish: Backside Copper
Rejection @ 1600 M{Hz: 44 dB typ.
Rejection @ 2600 MHz: 65 dB typ.
Rejection @ 3300 MHz: 50 dB typ.
Environmental Ratings:
Temperature: -55°C to +85°C
Non-Operating: -65°C to +125°C
