LNA-7D8G12D2G-28-15-15-SFF Preliminary

Low Noise Amplifier

Product Feature

Quantic PMI Model LNA-7D8G12D2G-28-15-15-SFF is a Low Noise Amplifier operating over the 7.8 to 12.2 GHz frequency range that offers a minimum signal gain of 21 dB, limiting noise to a maximum of 4 dB. Housing measures 2.4' x 0.85' x 0.4" and has SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 7.8 to 12.2
Frequency Min (GHz): 7.8
Frequency Max (GHz): 12.2
Gain (dB): 21 dB Min, 23 dB Max
Gain Flatness: ±1 dB Max
Noise Figure (dB): 4 dB Max
OP1dB (dBm): 15 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +15 VDC
DC Current (mA): 175 mA Max
Input Power: 20 dBm CW Max
Gain Variation Over Temperature: ±1 dB Max
OIP3: 24 dBm Min
Connectors: SMA Female - removable

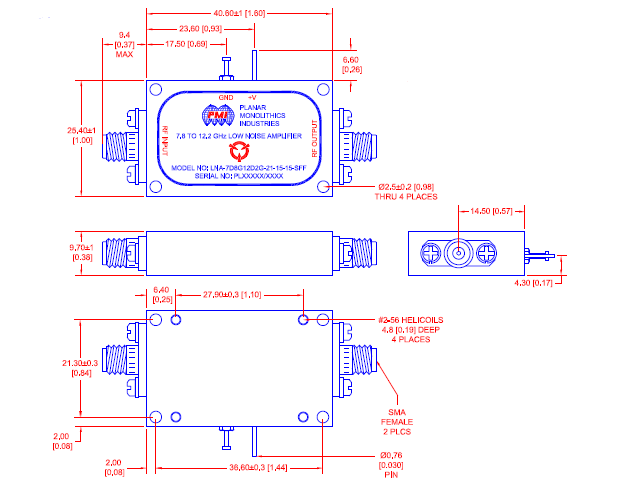

Size: 1.60" x 1.00" x 0.38",
40.6 mm x 25.4 mm x 9.7 mm
Finish: Painted Blue
Environmental Ratings:
Temperature: 0 ºC to +50 ºC Operating
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
