LNA-47-0R52-4-SFF Active

Low Noise Amplifier

Product Feature

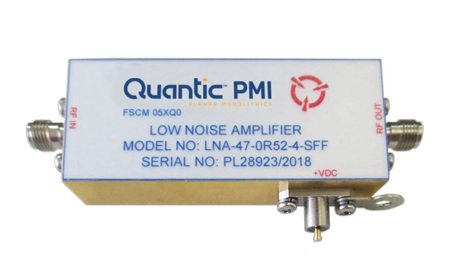

Quantic PMI Model LNA-47-0R52-4-SFF is a low noise amplifier that operates over the frequency range of 0.5 to 2 GHz with a minimum gain of 47 dB and a noise figure of 4 dB. This model housing measures 2.50" x 1.00" x 0.50" and is outfitted with SMA female connectors. This is a form, fit, function to Loral 342056.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.5 to 2
Frequency Min (GHz): 0.5
Frequency Max (GHz): 2
Gain (dB): 47 dB Min, 53 dB Max
Gain Flatness: ±1.25 dB
Noise Figure (dB): 4 dB
OP1dB (dBm): 20 dBm
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +15 VDC
DC Current (mA): 600 mA
Connectors: SMA Female
Size: 2.50" x 1.00" x 0.50"
Finish: Gold Plated
Minimum Third Order Intercept Point: 30 dBm
Typical Saturated Output Power: 23 dBm
Harmonics: -12 dBc
Non-Harmonic Spurious: -50 dBc
Stability: Unconditional
Cooling: Convection
Environmental Ratings:
Temperature (Operating): 0 °C to +70 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
