LNA-46-17-5-SFF Active

Low Noise Amplifier

Product Feature

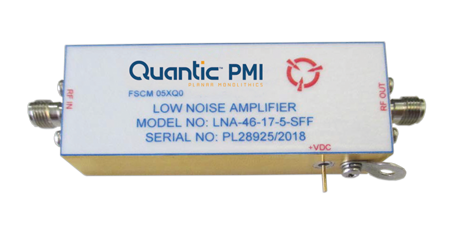

Quantic PMI Model LNA-46-17-5-SFF is a low noise amplifier that operates over the frequency range of 1 to 7 GHz with a minimum gain of 46 dB and a noise figure of 5 dB. This model housing size is 2.50" x 1.00" x 0.50" outfitted with SMA female connectors. This is a form, fit, function to Loral 342052.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 7
Frequency Min (GHz): 1
Frequency Max (GHz): 7
Gain (dB): 46 dB Min, 54 dB Max
Gain Flatness: ±2.0 dB
Noise Figure (dB): 5 dB
OP1dB (dBm): 23 dBm
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): 15 V
DC Current (mA): 1100 mA
Connectors: SMA Female - removable
Size: 2.50" x 1.00" x 0.50"
Finish: Gold Plated
Minimum Third Order Intercept Point: 30 dBm
Typical Saturated Output Power: 25 dBm
Harmonics: 12 dBc
Non-Harmonic Spurious: 50 dBc
Stability: Unconditional
Cooling: Convection
Environmental Ratings:
Temperature (Operating): 0 °C to +70 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
