LNA-40-10M300M-1D0-17-5-SFF Preliminary

Low Noise Amplifier

Product Feature

Quantic PMI Model LNA-40-10M300M-1D0-17-5-SFF is a low noise amplifier operating over the 0.01 to 0.3 GHz frequency range with a minimum gain of 40 dB, while maintaining a maximum noise figure of 1 dB. This compact model measures 1.25" x 1.25" x 0.25" and is outfitted with SMA connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 01 to 0.3
Frequency Min (GHz): 0.01
Frequency Max (GHz): 0.3
Gain (dB): 40 dB
Noise Figure (dB): 1 to 2 dB Max @ 0.01 to 0.3 GHz
OP1dB (dBm): 17 dBm
OIP3: 31 dBm
RF Input Power: 0 dBm
DC Voltage: +5 VDC (+5.5 VDC Max)
DC Current Draw: 170 mA @ Quiescent (No RF),
240 mA @ OP1dB = 25 dBm
Connectors: SMA Female - removable

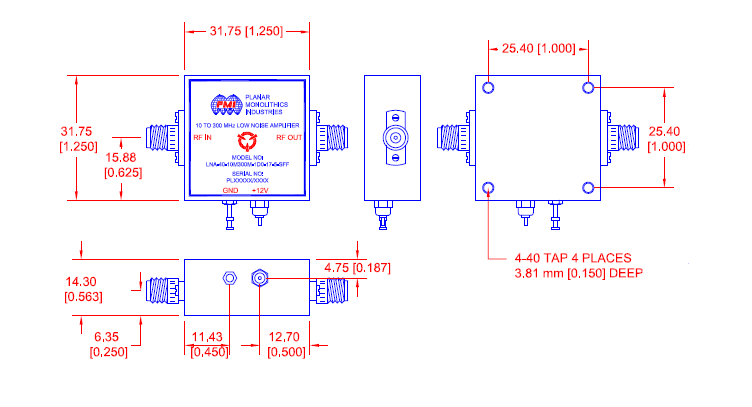

Size: 1.25" x 1.25" x 0.25"
Environmental Ratings:
Temperature (Operating): -40 ºC to 85 ºC
Temperature (Non-Operating): -55 ºC to +125 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
