LNA-40-0R52-4R5-SFF Preliminary

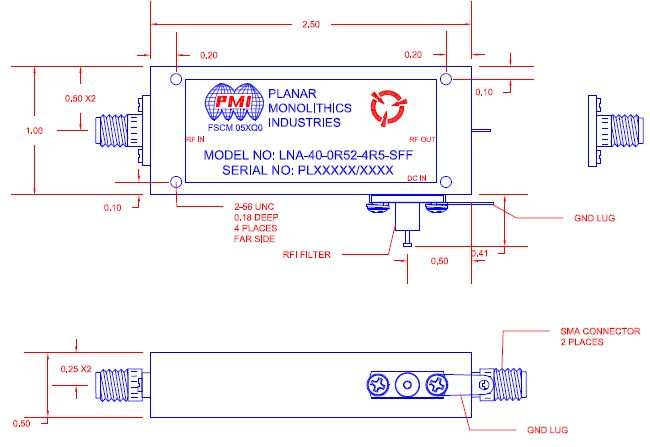

Product Feature

PMI Model No. LNA-40-0R52-4R5-SFF is a low noise amplifier that operates over the frequency range of 0.5 to 2.0 GHz. It has a minimum gain of 40 dB and a noise figure of 4.5 dB. This model is outfitted with SMA female connectors. This is a form, fit, function to Loral 320454.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range: 0.5 to 2.0 GHz
Frequency Min: 0.5 GHz
Frequency Max: 2.0 GHz
Gain: 40 dB min., 44 dB max.
Noise Figure: 4.5 dB
Gain Flatness: ±1 dB
OP1dB: 23 dBm
VSWR In/Out: 2:1
DC Voltage Supply: 15 V
DC Current Draw: 600 mA
Finish: Gold Plated
Minimum Third Order Intercept Point: 30 dBm
Typical Saturated Output Power: 25 dBm
Harmonics: -12 dBc
Non-Harmonic Spurious: -50 dBc
Stability: Unconditional
Cooling: Convection
Environmental Ratings:
Temperature (Operating): 0°C to +70°C
Temperature (Storage): -65°C to +125°C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
