LNA-40-0R4G6G-12-SFF Preliminary

Low Noise Amplifier

Product Feature

Quantic PMI Model LNA-40-0R4G6G-12-SFF is a low noise amplifier that operates over the frequency range of 0.4 to 6 GHz with a typical gain of 40 dB, a maximum noise figure of 2.5 dB and a typical P1dB of 20 dBm. This model housing measuring 1.0" x 0.9" x 0.45" and is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.4 to 6
Frequency Min (GHz): 0.4
Frequency Max (GHz): 6
Gain (dB): 40.5 dB Typ @ 0.4 GHz,
40 dB Typ @ 3 GHz,
42.5 dB Typ @ 6 GHz
Gain Flatness: ±1 dB Typ
Noise Figure (dB): 2 dB Typ, 2.5 dB Max
OP1dB (dBm): 20 dBm Typ
VSWR In/Out: 1.8:1 / 2.0:1 Typ
DC Voltage (VDC): +9 V Min, +12 V Typ, +15 V Max
DC Current (mA): 160 mA Typ
OIP3: 30 dBm Typ
Connectors: SMA Female - removable

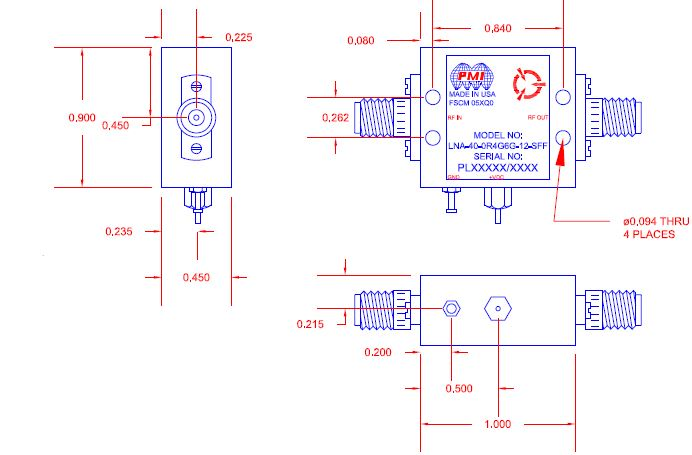

Size: 1.00" x 0.90" x 0.45"
Weight: 17 g
Noise Figure @ 3 GHz: 2.0 dB Typ, 2.5 dB Max
Reverse Isolation @ 3 GHz: -50 dB Typ
Environmental Ratings:
Temperature (Operating): -40 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
