LNA-40-0R18-NFF Preliminary

Low Noise Amplifier

Product Feature

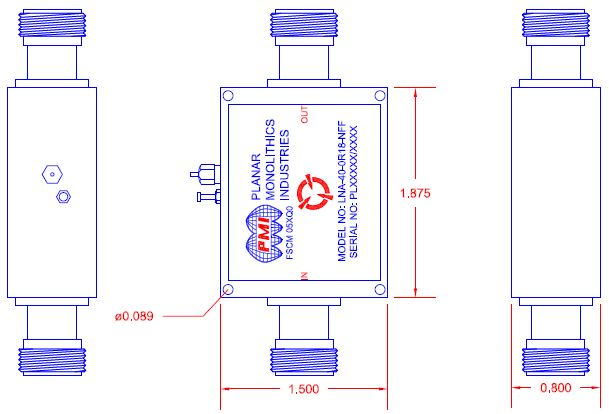

Quantic PMI Model LNA-40-0R18-NFF is a low noise amplifier that operates over the frequency range of 0.1 to 8 GHz with a typical gain of 40 dB and a maximum noise figure of 2.5 dB (Above 0.3 GHz). This model's housing measures 1.875" x 1.5" x 0.8" and is outfitted with N female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.1 to 8
Frequency Min (GHz): 0.1
Frequency Max (GHz): 8
Gain (dB): 38 dB Min, 40 dB Typ, 44 dB Max (Above 0.1 GHz)
Gain Flatness: ±2 dB Max (Above 0.1 GHz)
Noise Figure (dB): 2.5 dB Max (Above 0.3 GHz)
OP1dB (dBm): 20 dBm Min
VSWR In/Out: 2.5:1 Max
DC Voltage (VDC): 15 VDC
DC Current (mA): 325 mA
P1dB: 20 dBm Min
Connectors: Type-N (F)
Finish: Painted Blue
Max Input Power: 5 dBm Max
Operating Voltage: 15 VDC
Environmental Ratings:
Temperature (Operating): -20 °C to +55 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
