LNA-3D8G8D2G-26-13-15-SFF Preliminary

Low Noise Amplifier

Product Feature

Quantic PMI Model LNA-3D8G8D2G-26-13-15-SFF is a Low Noise Amplifier operating over the 3.8 to 8.2 GHz frequency range that offers a minimum signal gain of 26 dB, limiting noise to a maximum of 4 dB. The housing measures 1.93" x 0.80" x 0.43" and is outfitted with field replaceable SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 3.8 to 8.2
Frequency Min (GHz): 3.8
Frequency Max (GHz): 8.2
Gain (dB): 30 dB
Gain (Measured): 26 dB Min,
30 dB Max
Gain Flatness: ±1 dB Max
Noise Figure (dB): 4 dB Max
OP1dB (dBm): 13 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +15 ± 5% VDC
DC Current (mA): 220 mA Max
Input Power: 20 dBm CW
1 dB Gain Compression Point: 13 dBm Min
Gain Variation Over Temperature: ±1 dB Max
Connectors: SMA Female - removable

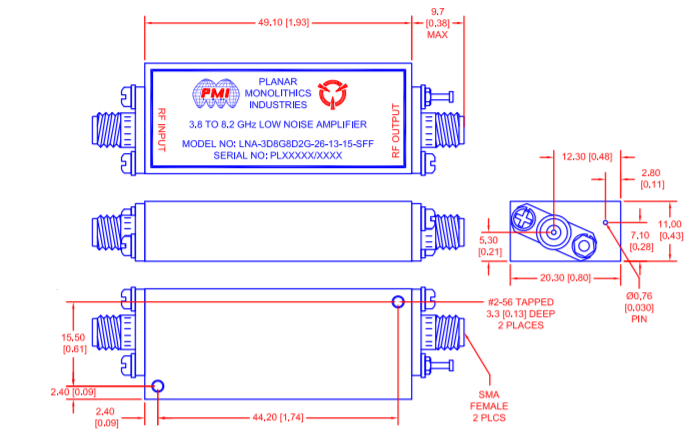

Size: 1.93" x 0.80" x 0.43"
Environmental Ratings:
Temperature: 0 ºC to +50 ºC Operating
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
