LNA-3D6G4D2G-50D0-0D56-15-SFF
Preliminary
Low Noise Amplifier
Quantic PMI Model LNA-3D6G4D2G-50D0-0D56-15-SFF is a 3.6 to 4.2 GHz, Narrow Band, Ultra Low Noise Amplifier which provides minimum gain of 50 dB while maintaining a maximum gain flatness of ±0.5 dB over the operating frequency. The maximum noise figure is 0.56 dB and offers a minimum OP1 dB of 10 dBm. The amplifier requires +15 V and the current draw is 200 mA maximum.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 3.6 to 4.2 |
|---|
| Frequency Min (GHz): | 3.6 |
|---|
| Frequency Max (GHz): | 4.2 |
|---|
| Gain (dB): | 50 dB Min |
|---|
| Gain Flatness (dB): | ±0.5 dB Max |
|---|
| Noise Figure (dB): | 0.56 dB Max |
|---|
| Input VSWR: | 1.25:1 Max |
|---|
| Output VSWR: | 1.5:1 Max |
|---|
| OP1dB (dBm): | 10 dBm Min |
|---|
| DC Voltage: | + 15 V |
|---|
| DC Current Draw: | 200 mA Max |
|---|
| Max Power: | 10 Watts Pulsed, 1us 0.1% Duty (With No Damage) |
|---|
| Connectors: | SMA Female |
|---|

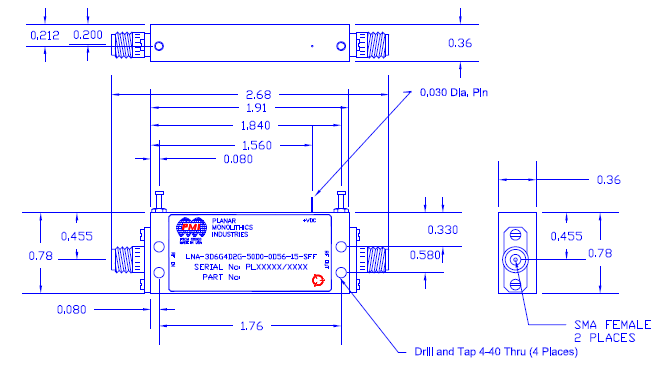

| Size: | 1.91" x 0.78" x 0.36" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 ºC to 85 ºC |
|---|
| Temperature (Non-Operating): | -55 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
