LNA-3D4G4D2G-22D0-0D5-15-SFF Active

Ultra Low Noise Amplifier

LNA-3D4G4D2G-22D0-0D5-15-SFF
Product Feature

Quantic PMI Model LNA-3D4G4D2G-22D0-0D5-15-SFF is a 3.4 to 4.2 GHz narrow band ultra low noise amplifier that offers a gain of 22 dB with a gain flatness of ±0.5 dB, a maximum noise figure of 0.5 dB, and a minimum OP1dB of 15 dBm CW.  Package size is 0.89" x 0.64" x 0.306" with removable SMA Female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Min (GHz): 3.4
Frequency Max (GHz): 4.2
Gain (dB): 22 dB Min
Gain Flatness (dB): ±0.5 dB Max
Noise Figure (dB): 0.5 dB Max
VSWR In/Out: 1.25:1 / 1.5:1
OP1dB (dBm): 15 dBm CW Max
DC Voltage: +15 VDC
DC Current Draw: 200 mA Max
Max Power: 15 dBm CW Max (With No Damage)
DC Supply: +15 V @ 200 mA Max
Amplifier Unconditionally Stable: Open/Short/Load
Connectors: SMA Female - removable

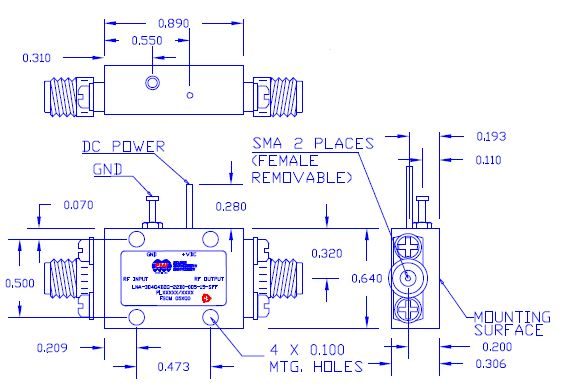

Size: 0.89" x 0.64" x 0.306"
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 °C to 85 °C
Temperature (Non-Operating): -55°C to +125°C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
