LNA-38-12R5-SFF Preliminary

Low Noise Amplifier

Product Feature

Quantic PMI Model LNA-38-12R5-SFF is a Low Noise Amplifier that operates over the frequency range of 1 to 2.5 GHz with a typical nominal SS gain @ 25°C of 38 dB and a typical gain flatness of ±0.75 dB. This model's housing size is 1.5" x 1.0" x 0.4" and is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 1 to 2.5
Frequency Min (GHz): 1
Frequency Max (GHz): 2.5
Gain (dB): 35 dB Min, 38 dB Typ, 41 dB Max
Gain Flatness: ±0.75 dB Typ, ±1 dB Max
Noise Figure (dB): 1 dB Typ, 1.2 dB Max
OP1dB (dBm): 24 dBm Min, 25 dBm Typ
VSWR In/Out: 1.6:1 Typ, 1.8:1 Max
DC Voltage (VDC): +11.5 V Min, +12 V Typ, +15 V Max
DC Current (mA): 150 mA Typ, 250 mA Max
Reverse Isolation: 50 dB Min, 55 dB Typ
Output IP3: 30 dBm Min, 35 dBm Typ
Connectors: SMA Female - removable

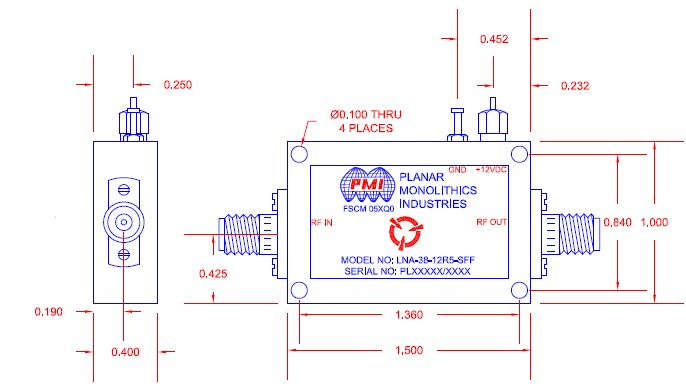

Size: 1.5" x 1.0" x 0.4"
Finish: Painted Blue
Non-Harmonic Spurious: -60 Max
Nominal SS Gain @ 25°C: 35 dB Min, 38 dB Typ, 41 dB Max
Gain Variation: ±1.0 dB Typ
Environmental Ratings:
Temperature (Operating): -40 °C to +75 °C
Temperature (Storage): -55 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
