LNA-36-50M1G-1-22-SFF Preliminary

Low Noise Amplifier

Product Feature

Quantic PMI Model LNA-36-50M1G-1-22-SFF is a low noise amplifier operating over the 0.05 to 1 GHz frequency range. This model offers a typical gain of 36 dB while maintaining a maximum noise figure of 1.2 dB. Compact package size of 1.25" x 1.25" x 0.563" with female SMA connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Min (GHz): 0.05
Frequency Max (GHz): 1
Gain (dB): 36 dB Typ
Gain Flatness (dB): ±1 dB Typ
Noise Figure (dB): 1 dB Typ
VSWR In/Out: 1.6:1 Typ
OP1dB (dBm): 22 dBm Typ
OIP3: 38 dBm Typ
RF Input Power: 13 dBm CW Max
Reverse Isolation: -44 dB Typ
DC Voltage: +10 to +18 VDC
DC Current Draw: 175 mA Typ
DC Supply: +12 VDC Typ
Connectors: SMA Female

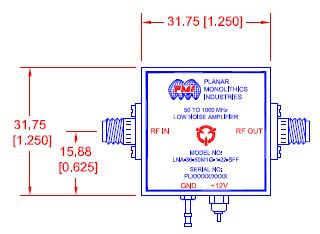

Size: 1.25" x 1.25" x 0.563"
31.75 mm x 31.75 mm x 14.30 mm
Finish: Painted Blue
Environmental Ratings:
Temperature (Operating): -40 °C to 85 °C
Temperature (Non-Operating): -55 °C to +125 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
