LNA-31-8R95G9R55G-6R0-39-12-SFF Preliminary

Low Noise Amplifier

LNA-31-8R95G9R55G-6R0-39-12-SFF
Product Feature

Quantic PMI Model LNA-31-8R95G9R55G-6R0-39-12-SFF is a narrowband amplifier that provides a minimum gain of 31 dB while maintaining a maximum gain flatness of 1.5 dB maximum over the operating frequency. The maximum noise figure is 6 dB and offers a minimum OP1dB of 39 dBm. The amplifier requires +12 VDC and a current draw of 8 amps maximum. This amplifier housing measures 7.0" x 4.0" x 1.2" and is supplied with nonremovable SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 8.95 to 9.55
Frequency Min (GHz): 8.95
Frequency Max (GHz): 9.55
Gain (dB): 31 dB Min
Gain Flatness (dB): ±1.5 dB Max
Noise Figure (dB): 4 dB Goal, 6 dB Max
VSWR In/Out: 1.80:1 Max
OP1dB (dBm): 39 dBm Min
DC Voltage: +12 VDC
DC Current Draw: 8 A Typ
Connectors: SMA Female

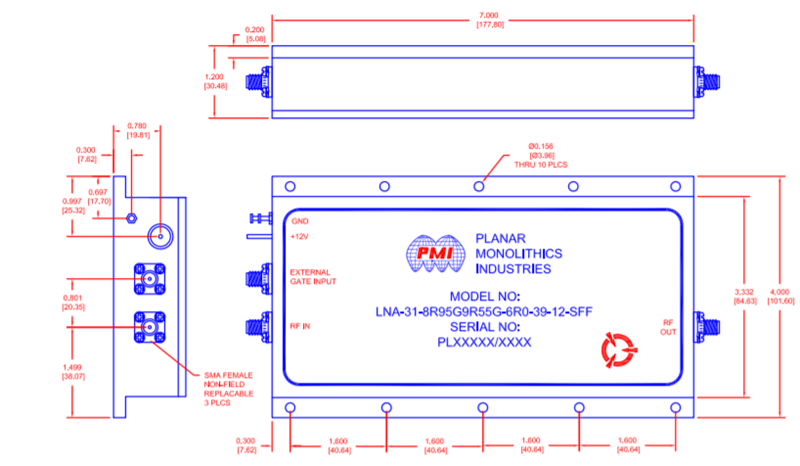

Size: 7.0" x 4.0" x 1.2"
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 ºC to 85 ºC
Temperature (Non-Operating): -55 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
