LNA-30M6G-40-3R0-12-SFF Preliminary

Low Noise Amplifier

Product Feature

Quantic PMI Model Number LNA-30M6G-40-3R0-12-SFF is a low noise amplifier that offer wide band (0.03 to 6 GHz), minimal DC supply, a 38 dB of gain and  a gain flatness of ±2 dB maximum with a OP1dB of 18 dBm. Housing measures 2.4' x 0.85' x 0.4" and has SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.03 to 6
Frequency Min (GHz): 0.03
Frequency Max (GHz): 6
Gain (dB): 38 dB Typ
Gain Flatness: ±2 dB Max
Noise Figure (dB): 4 dB Max
OP1dB (dBm): 18 dBm Typ
VSWR In/Out: 2.0:1 Max / 2.0:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 450 mA Typ
Input Power: 15 dBm CW (no damage)
OIP3: 30 dBm Typ
Connectors: SMA Female

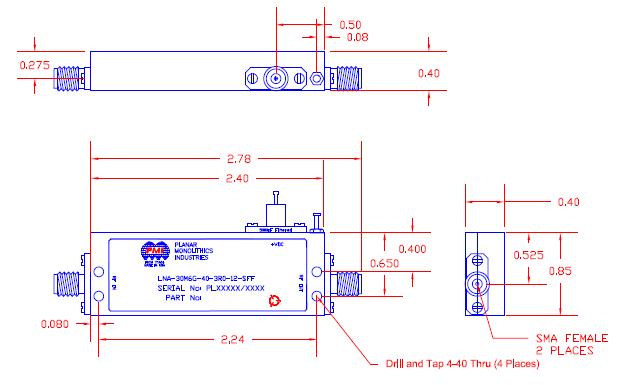

Size: 2.4' x 0.85' x 0.4"
Finish: Gold Plated
Environmental Ratings:
Temperature: -20 ºC to +75 ºC Operating,
-55 ºC to +95 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
