LNA-30-2D7G3G-6R0-44-12-SFF Preliminary

Low Noise Amplifier

LNA-30-2D7G3G-6R0-44-12-SFF
Product Feature

Quantic PMI Model LNA-30-2R7G3G-29-6R0-44-12-SFF is a 2.7 to 3 GHz, Low Noise Amplifier which provides 30 dB of gain while maintaining a maximum gain flatness of 1 dB peak-to-peak over the operating frequency with a maximum noise figure is 6 dB and offers a minimum OP1 dB of 44 dBm. The amplifier requires +12 VDC and a current draw of 12 A. minimum. This amplifier measures 8.0" x 4.0" 1.2" is supplied with removable SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 2.7 to 3
Frequency Min (GHz): 2.7
Frequency Max (GHz): 3
Gain (dB): 30 dB Min
Gain Flatness (dB): ±1 dB Max
Noise Figure (dB): 4 dB Goal,
6 dB Typ
OP1dB (dBm): 43 dBm Min,
44 dBm Typ
OIP3: 50 dBm Min,
51 dBm Typ
OPsat: 44.5 dBm Typ
RF Input Power: 30 dBm Max
DC Voltage: +12 VDC
DC Current Draw: 12 A Min, 15 A Max
Gain Variation Over Temperature: 0.04 dB/°C Goal,
0.06 dB/°C Max
Harmonics: -30 dBc @ P1dB
Non-Harmonics: -70 dBc Min
Impedance: 50 Ohm
Connectors: SMA Female

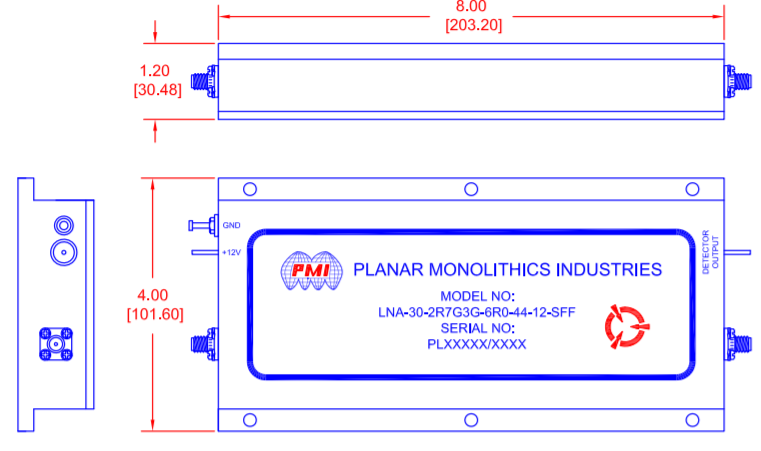

Size: 8.0" x 4.0" 1.2"
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -10 ºC to +60 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
