LNA-30-10G18G-3R0-25 Preliminary

Low Noise Amplifier

Product Feature

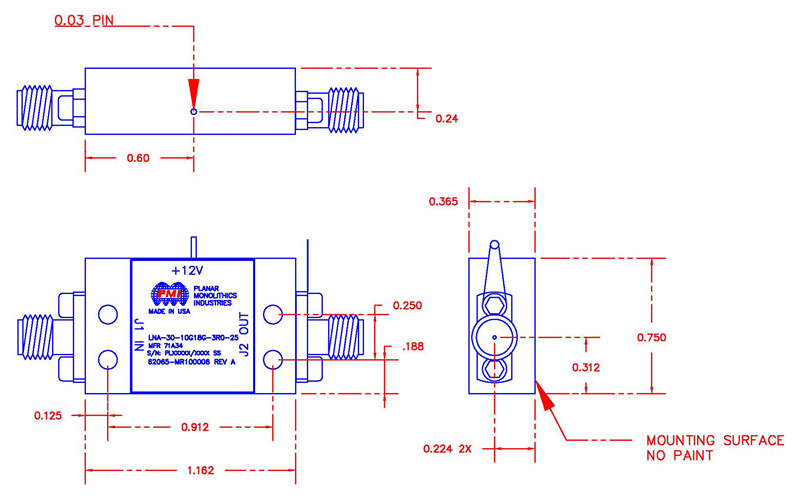

Quantic PMI Model LNA-30-10G18G-3R0-25 is a 10 to 18 GHz, Low Noise Amplifier with a noise figure of 3 dB maximum. @ 25 °C and 5 dB over temperature.  Package size is 1.162" x 0.75" x 0.365" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 10 to 18
Frequency Min (GHz): 10
Frequency Max (GHz): 18
Gain (dB): 30 ± 1.5 dB @ 25 °C,
30 ± 2 dB Over Temperature
Noise Figure (dB): 3 dB Max @ 25 °C,
5 dB Over Temperature
OP1dB (dBm): 25 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 to +14 V
DC Current (mA): 550 mA
OIP3: 35 dB
Connectors: SMA Female - removable
Size: 1.162" x 0.750" x 0.365"
Finish: Painted Blue
Spurious: -60 dBc Max
Explosive Atmosphere: MIL-STD-810, Method 511.4 Procedure 1
Environmental Ratings:
Temperature: -30 °C to +75 °C (Operating),
-40 °C to +85 °C (Storage)
Humidity: MIL-STD-810, Method 507 Procedure II
Shock: MIL-STD-810, Method 516 Procedure 1
Vibration: MIL-STD-810, Method 514 Procedure II
Altitude (Operating): MIL-STD-810, Method 500 Procedure II
Altitude (Storage): MIL-STD-810, Method 500 Procedure 1
