LNA-2D7G3D1G-29-0D7-16D5-15-SFM Preliminary

Ultra Low Noise Amplifier

LNA-2D7G3D1G-29-0D7-16D5-15-SFM
Product Feature

Quantic PMI Model LNA-2D7G3D1G-29-0D7-16D5-15-SFM is a 2.7 to 3.1 GHz, Ultra Low Noise Amplifier which provides 28 to 30 dB of gain while maintaining a maximum gain flatness of ±1 dB over the operating frequency, a noise figure is 0.65 dB maximum and offers a minimum OP1 dB of 13 dBm. The amplifier requires 8 to +15 VDC and the current draw is 125 mA maximum. Package size is 1.0" x 1.0" x 0.36" with SMA female / male connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 2.7 to 3.1
Frequency Min (GHz): 2.7
Frequency Max (GHz): 3.1
Gain (dB): 28 to 30 dB
Gain Flatness (dB): ±1 dB Max
Noise Figure (dB): 0.65 dB Max
Input VSWR: 1.6:1 Max,
1.5:1 Goal
Output VSWR: 1.6:1 Max, 1.5:1 Goal
OP1dB (dBm): 13 dBm Min,
16.5 dBm Typ
OIP3: 27 dBm Min,
33.5 dBm Typ
OPsat: 20 dBm Max, 17 dBm Goal
RF Input Power: 5 dBm CW Max
DC Voltage: 8 to +15 VDC
DC Current Draw: 125 mA Max
Gain Variation Over Temperature: 2 dB PK to PK Max
Connectors: SMA Female (Input) / Male (Output)

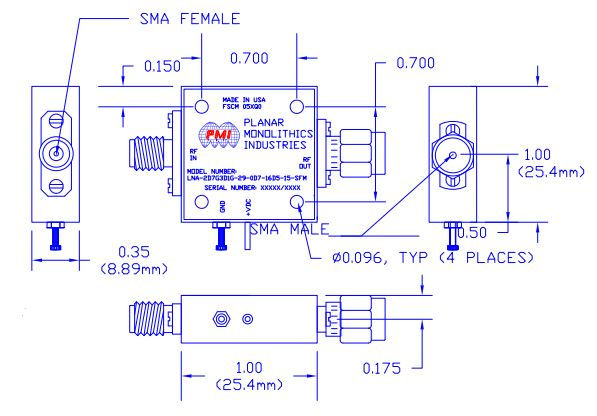

Size: 1.00" x 1.00" x 0.35"
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): 10 ºC to +75 ºC
Temperature (Non-Operating): -35 ºC to +90 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
