| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 2.7 to 3.1 |
|---|
| Frequency Min (GHz): | 2.7 |
|---|
| Frequency Max (GHz): | 3.1 |
|---|
| Gain (dB): | 28 to 30 dB |
|---|
| Gain Flatness (dB): | ±1 dB Max |
|---|
| Noise Figure (dB): | 0.6 dB Max, 0.53 dB Typ (0.005 dB/°C) |
|---|
| Input VSWR: | 1.6:1 Max, 1.45:1 Typ |
|---|
| Output VSWR: | 1.45:1 Max, 1.35:1 Typ |
|---|
| OP1dB (dBm): | 13 dBm Min,
16.5 dBm Typ |
|---|
| OIP3: | 23 dBm Typ |
|---|
| OPsat: | 18 dBm Max |
|---|
| RF Input Power: | 5 dBm CW Max |
|---|
| DC Voltage: | +8 to +11.5 VDC |
|---|
| DC Current Draw: | 125 mA Max |
|---|
| Gain Variation Over Temperature: | 2 dB PK to PK Max |
|---|
| RoHS Compliant: | Yes |
|---|

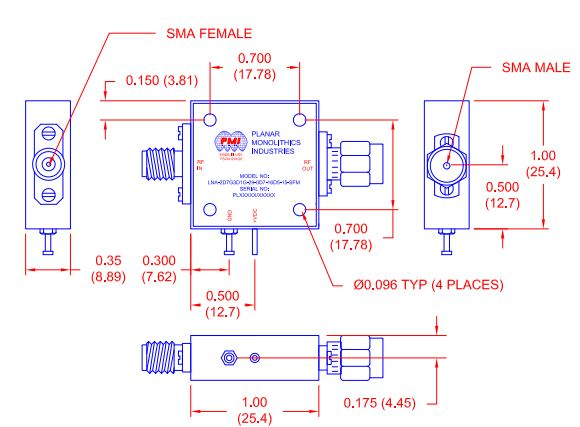

| Connectors: | SMA Female (Input) / Male (Output) |
|---|
| Size: | 1.00" x 1.00" x 0.35" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | 10 ºC to +75 ºC |
|---|
| Temperature (Non-Operating): | -35 ºC to +90 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
