LNA-27-0R51R5-6-SFF Preliminary

Low Noise Amplifier

Product Feature

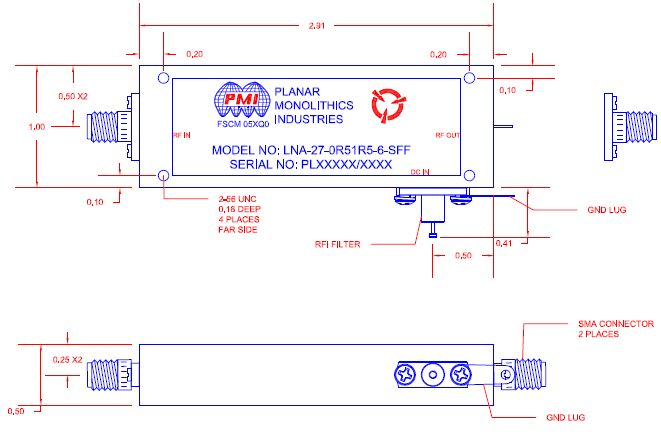

Quantic PMI Model LNA-27-0R51R5-6-SFF is a low noise amplifier that operates over the frequency range of 0.5 to 1.5 GHz with a minimum gain of 27 dB and a noise figure of 6 dB. This model housing measues 2.91" x 1.0" x 0.5" and is outfitted with removable SMA female connectors. This is a form, fit, function to Loral 342079.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.5 to 1.5
Frequency Min (GHz): 0.5
Frequency Max (GHz): 1.5
Gain (dB): 27 dB Min, 32 dB Max
Gain Flatness: ±1.25 dB
Noise Figure (dB): 6 dB
OP1dB (dBm): 30 dBm
VSWR In/Out: 2:1
DC Voltage (VDC): 15 V
DC Current (mA): 1500 mA
Connectors: SMA Female - removable
Size: 2.91" x 1.0" x 0.5"
Finish: Gold Plated
Minimum Third Order Intercept Point: 38 dBm
Typical Saturated Output Power: 33 dBm
Harmonics: -12 dBc
Non-Harmonic Spurious: -50 dBc
Stability: Unconditional
Cooling: Convection
Environmental Ratings:
Temperature (Operating): 0 °C to +70 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
