LNA-26-2G3D5G-3R0-25 Preliminary

Low Noise Amplifier

Product Feature

Quantic PMI Model LNA-26-2G3D5G-3R0-25 is a 2 to 3.5 GHz, Low Noise Amplifier that offers a gain of 26 dB with a gain flatness of ±0.5 dB, a maximum noise figure of 25 dB, and a minimum OP1dB of 23 dBm. Package size is 1.162" x 0.75" x 0.365" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 2 to 3.5
Frequency Min (GHz): 2
Frequency Max (GHz): 3.5
Gain (dB): 26 dB
Gain Flatness (dB): ±0.5 dB @ 25 °C (±2 dB Over Temperature)
Noise Figure (dB): 3 dB Max @ 25 °C,
5 dB Over Temperature
VSWR In/Out: 2.0:1
OP1dB (dBm): 25 dBm Min
OIP3: 35 dBm Min
DC Voltage: +12 to +14 VDC
DC Current Draw: 550 mA Max
Spurious: -60 dBc Max
Max Power: 20 dBm
Connectors: SMA Female

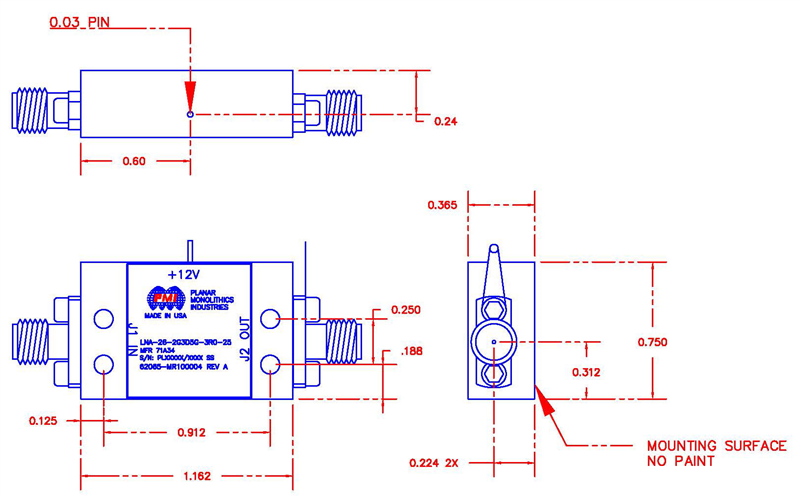

Size: 1.162" x 0.750" x 0.365"
Finish: Painted Blue
Environmental Ratings:
Temperature (Operating): -30 °C to +75 °C
Temperature (Non-Operating): -40 °C to 85 °C
Humidity: MIL-STD-810, Method 507, Procedure II
Shock: MIL-STD-810, Method 516 Procedure 1
Vibration: MIL-STD-810, Method 514 Procedure II
Altitude (Operating): MIL-STD-810, Method 500 Procedure II
Altitude (Storage): MIL-STD-810, Method 500 Procedure 1
Explosive Atmosphere: MIL-STD-810, Method 511.4 Procedure 1
