LNA-16F-24DB-107NF Option SS Preliminary

Low Noise Amplifier

LNA-16F-24DB-107NF Option SS
Product Feature

Quantic PMI Model LNA-16F-24DB-107NF Option SS is an Ultra Low Noise Miniature Amplifier that has built in regulation and temperature compensation circuitry for use in military and rugged environments. This amplifier offers a center frequency of 16.25 ± 0.25 GHz that provides 23 to 25 dB of gain with a gain flatness of ±0.5 dB, a maximum noise figure of 2 dB @+ 85 °C, and a minimum OP1dB of 10 to 15 dBm. Package size is 0.71" x 0.64" x 0.31" with removable SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Min (GHz): 16
Frequency Max (GHz): 16.5
Gain (dB): 23 to 25 dB - Over Frequency and Temperature.
Gain Flatness (dB): ±0.5 dB Max
Noise Figure (dB): 1.6 dB Max @ Room Temperature (+25 °C),
1.8 dB Max @ +30 °C,
1.9 dB Max @ +75 °C,
2 dB Max @ 85 °C
Input VSWR: 1.8:1 Max
OP1dB (dBm): 10 dBm Min
DC Voltage: +12 VDC
DC Current Draw: 150 mA Max
DC Supply: +15 VDC, ±10 %
DC Current: 150 mA Max
Connectors: SMA Female - removable

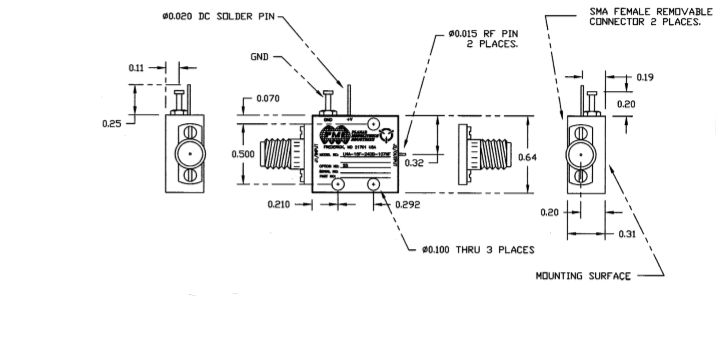

Size: 0.71" x 0.64" x 0.31"
Weight: 0.35 oz Typical
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 ºC to 85 ºC
Temperature (Non-Operating): -55 ºC to 85 ºC
Humidity: 98% maximum Relative Humidity
Vibration: 0.04 g^2/Hz From 10 to 2000 Hz for 2 Minutes
