LNA-12-0R5G2G-6-7-12-SFF Preliminary

Low Noise Amplifier

LNA-12-0R5G2G-6-7-12-SFF
Product Feature

Quantic PMI Model LNA-12-0R5G2G-6-7-12-SFF is a low noise amplifier operating over the 0.5 to 2 GHz frequency range that offers a typical gain of 12 ±3 dB while maintaining a maximum noise figure of 6 dB. This compact model measures 1.25" x 1.25" x 0.563" and is outfitted with female SMA connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.5 to 2
Frequency Min (GHz): 0.5
Frequency Max (GHz): 2
Gain (dB): 12 ± 3 dB
Noise Figure (dB): 6 dB Max
VSWR In/Out: 1.2:1
OP1dB (dBm): 7 dBm Min
OIP3: 15 dB Min
DC Voltage: +12 to +15 VDC
DC Current Draw: 400 mA Max
Input Power Handling: 23 dBm Min
Connectors: SMA Female

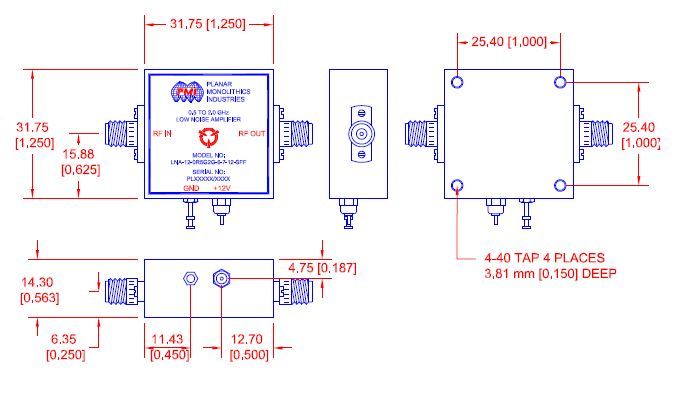

Size: 1.25" x 1.25" x 0.563"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 °C to +70 °C
Temperature (Non-Operating): -55 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
