LNA-10R7G12R75G-12-1R0-5-15-292FF Preliminary

Low Noise Amplifier

LNA-10R7G12R75G-12-1R0-5-15-292FF
Product Feature

Quantic PMI Model LNA-10R7G12R75G-12-1R0-5-15-292FF is a Low Noise Amplifier operating over the 10.7 to 12.75 GHz frequency range that provides a minimum gain of 12 dB while maintaining a maximum gain flatness of 0.5 dB peak to peak. The noise figure is 70 °K (0.94 dB) maximum and offers a minimum OP1 dB of 5 dBm. The amplifier operates on 8 to +15 V and the current draw is 15 mA maximum. Package size is 0.64" x 0.57" x 0.31" and is outfitted 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 10.7 to 12.75
Frequency Min (GHz): 10.7
Frequency Max (GHz): 12.75
Gain (dB): 12 dB Typ
Gain Flatness (dB): 0.5 dB PK-PK Typ,
1.5 dB Max
Noise Figure (dB): 0.75 dB (55 °K) Goal,
0.94 dB (70 °K) Max
Input VSWR: Input (3:1 Goal, 4.5:1 Max)
Output VSWR: Output (1.3:1 Goal, 1.5:1 Max)
OP1dB (dBm): 5 dBm Min
OIP3: 12 dBm Min
RF Input Power: 10 dBm Max
DC Voltage: 8 to +15 VDC
DC Current Draw: 15 mA Max
Connectors: 2.92mm Female

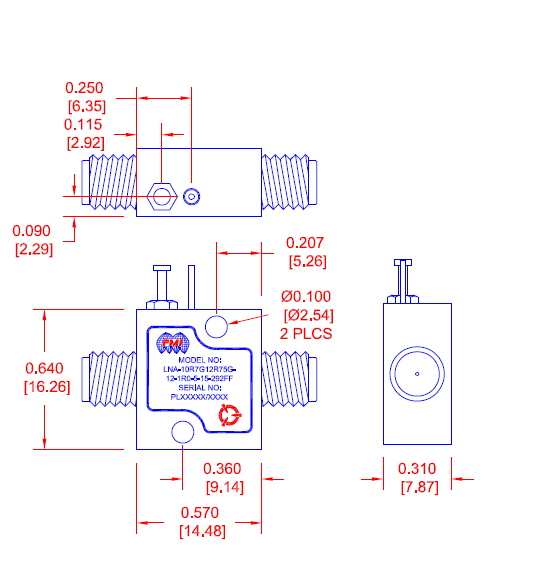

Size: 0.64" x 0.57" x 0.31",
16.26mm x 14.48mm x 7.87mm
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 ºC to 85 ºC
Temperature (Non-Operating): -54 ºC to 100 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
