LNA-0R518G-45-10DBM-SFF Active

Low Noise Amplifier

Buy Now

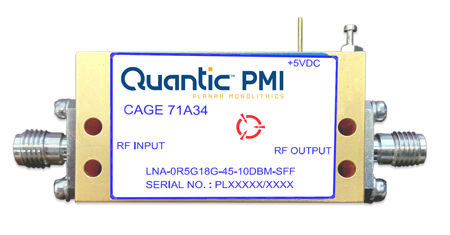

Quantic PMI Model LNA-0R518G-45-10DBM-SFF is a Low Noise Amplifier that operates over the 0.5 to 18 GHz with a typical gain of 45 dB, noise figure of 3.5 dB maximum, a P1dB of 10 dBm and a typical VSWR of 2.2:1.  Supplied in small housing measuring 0.90" x 1.668" x 0.35" with removable SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.5 to 18
Frequency Min (GHz): 0.5 (Operational to 0.1 GHz with no degradation)
Frequency Max (GHz): 18 dB
Gain (dB): 45 dB Typ
Gain Flatness: ±2 dB
Noise Figure (dB): 3.5 dB Max
OP1dB (dBm): 10 dBm Min
VSWR In/Out: 2.2:1 Typ / 2.5:1 Max
DC Voltage (VDC): +5 VDC
DC Current (mA): 500 mA Max
Input Power: 20 dBm Max
Connectors: SMA Femal - removable
Size: 0.90" x 1.668" x 0.35"
Finish: Gold Plated
Environmental Ratings:
Temperature: -40 °C to +85 °C (Operating)
-54 °C to +95 °C (Non-Operating)
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
