LNA-0R3G4G-40-10DBM-SFF Active

Low Noise Amplifier

Product Feature

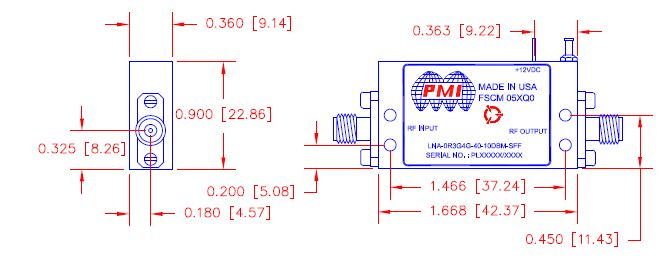

Quantic PMI Model LNA-0R3G4G-40-10DBM-SFF is a 0.3 to 4 GHz low noise amplifier with a minimum gain of 38 dB gain, a noise figure of 1.8 dB, and a P1dB of 10 dBm. Supplied in a small housing measuring only 0.9" x 1.668" x 0.36" with removable SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.3 to 4
Frequency Min (GHz): 0.3
Frequency Max (GHz): 4
Gain (dB): 38 dB Min,
41 dB Typ
Noise Figure (dB): 1.8 dB Max (-54 to +25 °C),
2.2 dB Max (+71 °C)
OP1dB (dBm): 10 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 VDC ± 5%
DC Current (mA): 160 mA Max
Input Power: 20 dBm Max
Connectors: SMA (F) - Field Removable
Finish: Gold Plated & Hermetically Sealed
Environmental Ratings:
Temperature (Operating): -54 °C to +55 °C
Temperature (Storage): -54 °C to +85 °C
Humidity: 100% RH (With condensation) Hermetically Sealed
Shock: MIL-HDBK-5400 4.62.6
Vibration: MIL-HDBK-5400 4.6.2.5 Equipment designed for install in JET aircraft
W0=0. 171 G2/Hz (15.1 Grms)
Altitude: 43, 000 FT
Temperature Cycle: MIL-STD-202F, METHOD 107D COND A.
