LNA-0D4G6D0G-35-10D0-15-SFF Preliminary

Low Noise Amplifier

Product Feature

Quantic PMI Model LNA-0D4G6D0G-35-10D0-15-SFF is a 0.4 to 6 GHz, Low Noise Amplifier which provides minimum gain of 35 dB while maintaining a maximum gain flatness of ±1.5 dB over the operating frequency. The maximum noise figure is 2.4 dB and offers a minimum OP1 dB of 10 dBm. The amplifier requires +15 V and the current draw is 325 mA nominal. It is supplied with removable SMA female connectors in a housing measuring 0.89" x 0.64" x 0.31".

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.4 to 6
Frequency Min (GHz): 0.4
Frequency Max (GHz): 6
Gain (dB): 35 dB Min
Gain Flatness: ±1.5 dB Max
Noise Figure (dB): 2.4 dB Max
OP1dB (dBm): 10 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +15 V Nom
DC Current (mA): 325 mA Nom
Input Power: 13 dB Max.
1 dB Gain Compression Point: 10 dBm Minimum, Output Power
Connectors: SMA Female - removable

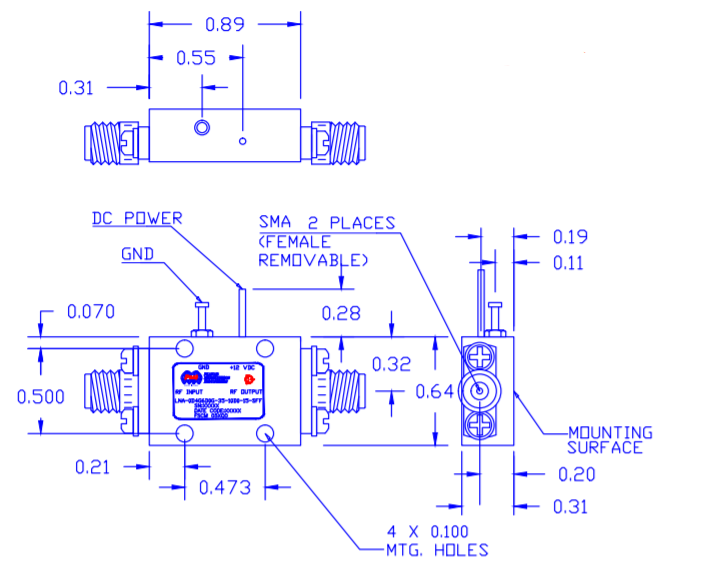

Size: 0.89" x 0.64" x 0.31"
Environmental Ratings:
Temperature: -40 ºC to +75 ºC Operating, br>-50 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
