LNA-0D1G8D0G-20-1D5-10D0-15-SFF Preliminary

Low Noise Amplifier

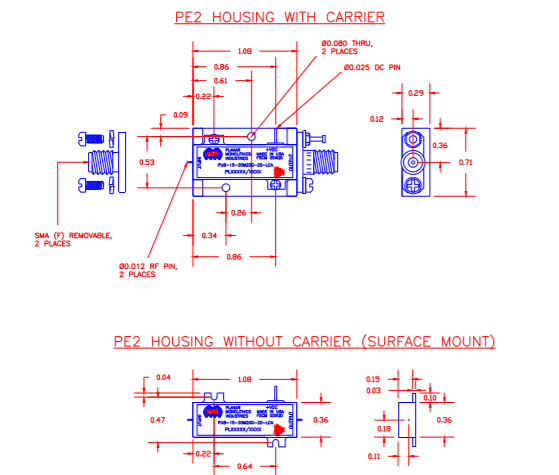

Quantic PMI Model LNA-0D1G8D0G-20-1D5-10D0-15-SFF is a 0.1 to 8 GHz, Low Noise Amplifier which provides minimum gain of 20 dB while maintaining a maximum gain flatness of ±1.5 dB over the operating frequency with a maximum noise figure is 1.5 dB and offers a minimum OP1 dB of +10 dBm. The amplifier requires +8 V to +15 V and the current draw is 80 mA typical. Supplied in our PE2  housing that can be used as an SMA connectorized or surface mounted component.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.1 to 8
Frequency Min (GHz): 0.1
Frequency Max (GHz): 8
Gain (dB): 20 dB Min
Gain Flatness: ±1.5 dB Max
Noise Figure (dB): 1.5 dB Max
OP1dB (dBm): 10 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +8 to +15 VDC
DC Current (mA): 80 mA Typ
OIP3: 20 dBm Max
Connectors: SMA Female - removable
Housing: PE2
Finish: Gold Plated
Environmental Ratings:
Temperature: -54 ºC to +85 ºC Operating,
-55 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
