LNA-0D1G6D0G-18-1D2-8D0-15-SFF Active

Quantic PMI Model LNA-0D1G6D0G-18-1D2-8D0-15-SFF is a low noise amplifier that offers a gain of 18 dB and a gain flatness of ±1.2 dB with a noise figure of 1.8 dB.  The unit is supplied in a standard PE2 housing that can be used as a SMA connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.1 to 6
Frequency Min (GHz): 0.1
Frequency Max (GHz): 6
Gain (dB): 18 dB Min
Gain Flatness: ±1.2 dB Max
Noise Figure (dB): 1.8 dB Max
OP1dB (dBm): 8 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +15 V
DC Current (mA): 80 mA Typ
OIP3: 18 dBm Max
Connectors: SMA Female - removable
Size: 1.08" x 0.71" x 029"

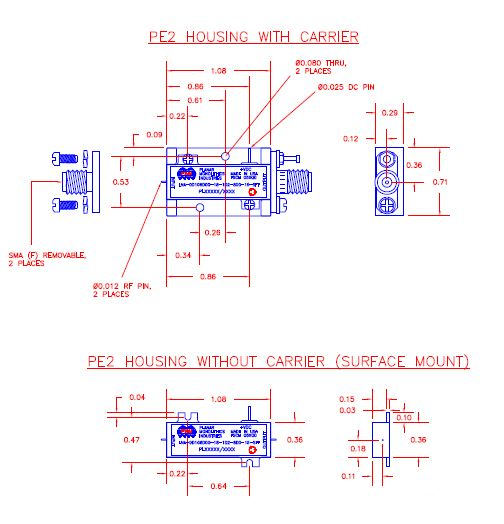

Housing: PE2
Finish: Gold Plated
Environmental Ratings:
Temperature (Operating): -54 °C to +85 °C
Temperature (Storage): -55 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
